Getting started with Apache Airflow.

What is Airflow?

From the Website:

Airflow is a platform to programmatically author, schedule and monitor workflows.

Use airflow to author workflows as directed acyclic graphs (DAGs) of tasks. The airflow scheduler executes your tasks on an array of workers while following the specified dependencies. Rich command line utilities make performing complex surgeries on DAGs a snap. The rich user interface makes it easy to visualize pipelines running in production, monitor progress, and troubleshoot issues when needed.

Basically, it helps to automate scripts in order to perform tasks. Airflow is Python-based but you can execute a program irrespective of the language. For instance, the first stage of your workflow has to execute a C++ based program to perform image analysis and then a Python-based program to transfer that information to S3. Possibilities are endless.

What is Dag?

From Wikipedia

In mathematics and computer science, a directed acyclic graph (DAG /ˈdæɡ/ (About this sound listen)), is a finite directed graph with no directed cycles. That is, it consists of finitely many vertices and edges, with each edge directed from one vertex to another, such that there is no way to start at any vertex v and follow a consistently-directed sequence of edges that eventually loops back to v again. Equivalently, a DAG is a directed graph that has a topological ordering, a sequence of the vertices such that every edge is directed from earlier to later in the sequence.

Let me try to explain in simple words: You can only be a son of your father but not vice versa. OK, it’s lame or weird but could not find a better example to explain a directed cycle.

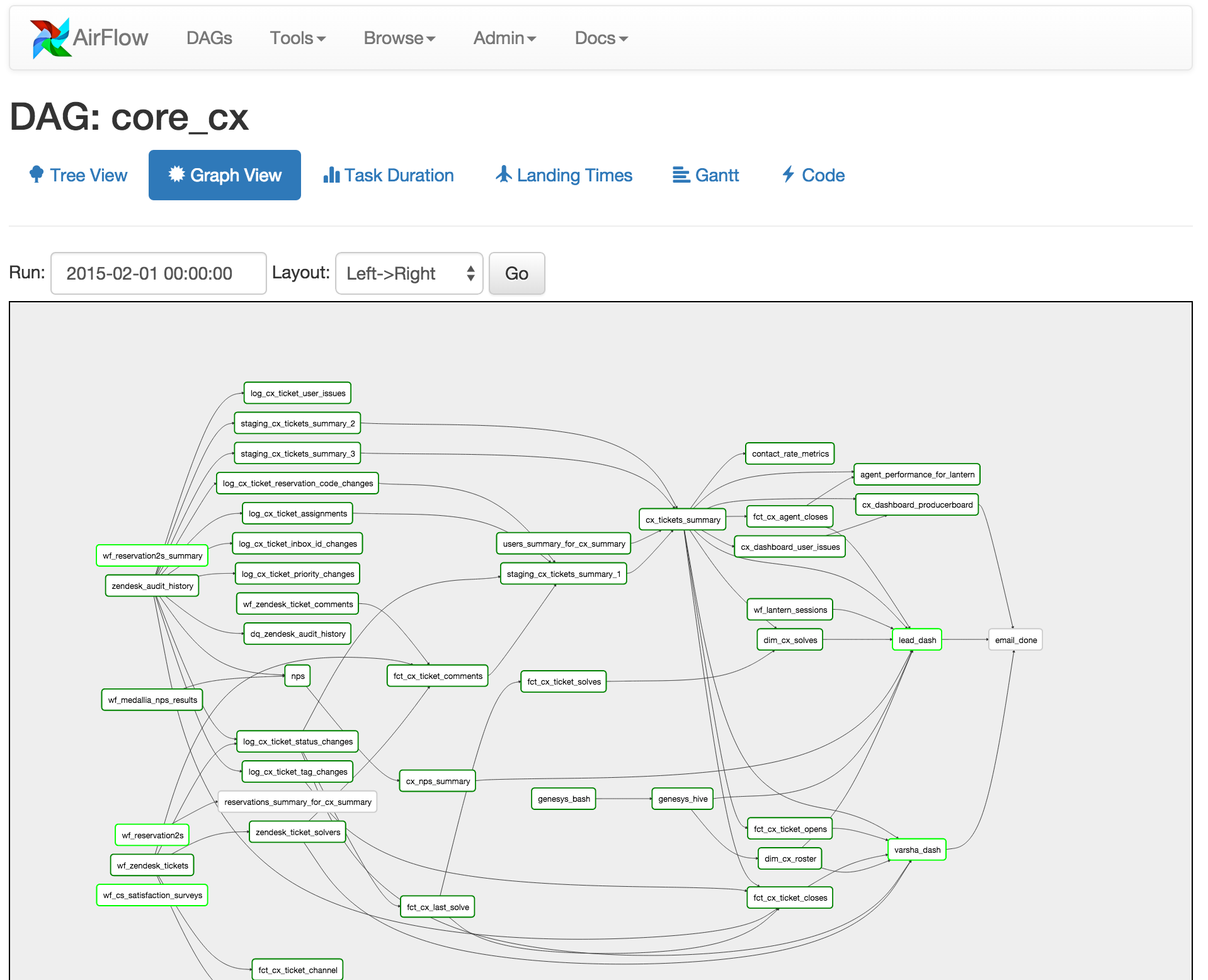

Airflow DAG(Credit: Apache Airflow)

In Airflow all workflows are DAGs. A Dag consists of operators. An operator defines an individual task that needs to be performed. There are different types of operators available( As given on Airflow Website):

  •  - executes a bash command
  •  - calls an arbitrary Python function
  •  - sends an email
  •  - sends an HTTP request
  • , , , , , , etc. - executes a SQL command
  •  - waits for a certain time, file, database row, S3 key, etc…

You can also come up with a custom operator as per your need.

Installation and Setup

Airflow is Python based. The best way to install it is via  tool.

To verify whether it got installed, run the command:  and it should print something like:

[2018-09-22 15:59:23,880] {__init__.py:51} INFO - Using executor SequentialExecutor____________       _________________    |__( )_________  __/__  /________      ______  /| |_  /__  ___/_  /_ __  /_  __ \_ | /| / /___  ___ |  / _  /   _  __/ _  / / /_/ /_ |/ |/ /_/_/  |_/_/  /_/    /_/    /_/  \____/____/|__/v1.10.0

You will need to install  as well to incorporate MySQL in your workflows. It is optional though.

Before you start anything, create a folder and set it as . In my case it is . Once created you will call  command to set it in the path.

Make sure you are a folder above of  before running the  command. Within  you will create another folder to keep DAGs. Call it

If you set  it will not load default examples on the Web interface.

Now you have to call  within  folder. Once it’s done it creates and

 is an SQLite file to store all configuration related to run workflows.  is to keep all initial settings to keep things running.

In this file, you can see  parameter with the value

You can use MySQL if you want. For now, just stick with basic settings.

So far so good, now without wasting any time let’s start the web server.

When starts it shows the screen like:

2018-09-20 22:36:24,943] {__init__.py:51} INFO - Using executor SequentialExecutor/anaconda3/anaconda/lib/python3.6/site-packages/airflow/bin/cli.py:1595: DeprecationWarning: The celeryd_concurrency option in [celery] has been renamed to worker_concurrency - the old setting has been used, but please update your config.default=conf.get('celery', 'worker_concurrency')),____________       _________________    |__( )_________  __/__  /________      ______  /| |_  /__  ___/_  /_ __  /_  __ \_ | /| / /___  ___ |  / _  /   _  __/ _  / / /_/ /_ |/ |/ /_/_/  |_/_/  /_/    /_/    /_/  \____/____/|__/v1.10.0[2018-09-19 14:21:42,340] {__init__.py:57} INFO - Using executor SequentialExecutor____________       _________________    |__( )_________  __/__  /________      ______  /| |_  /__  ___/_  /_ __  /_  __ \_ | /| / /___  ___ |  / _  /   _  __/ _  / / /_/ /_ |/ |/ /_/_/  |_/_/  /_/    /_/    /_/  \____/____/|__//anaconda3/anaconda/lib/python3.6/site-packages/flask/exthook.py:71: ExtDeprecationWarning: Importing flask.ext.cache is deprecated, use flask_cache instead..format(x=modname), ExtDeprecationWarning[2018-09-19 14:21:43,119] [48995] {models.py:167} INFO - Filling up the DagBag from /Development/airflow_home/dagsRunning the Gunicorn Server with:Workers: 4 syncHost: 0.0.0.0:8080

Now when you visit  it shows a screen like:

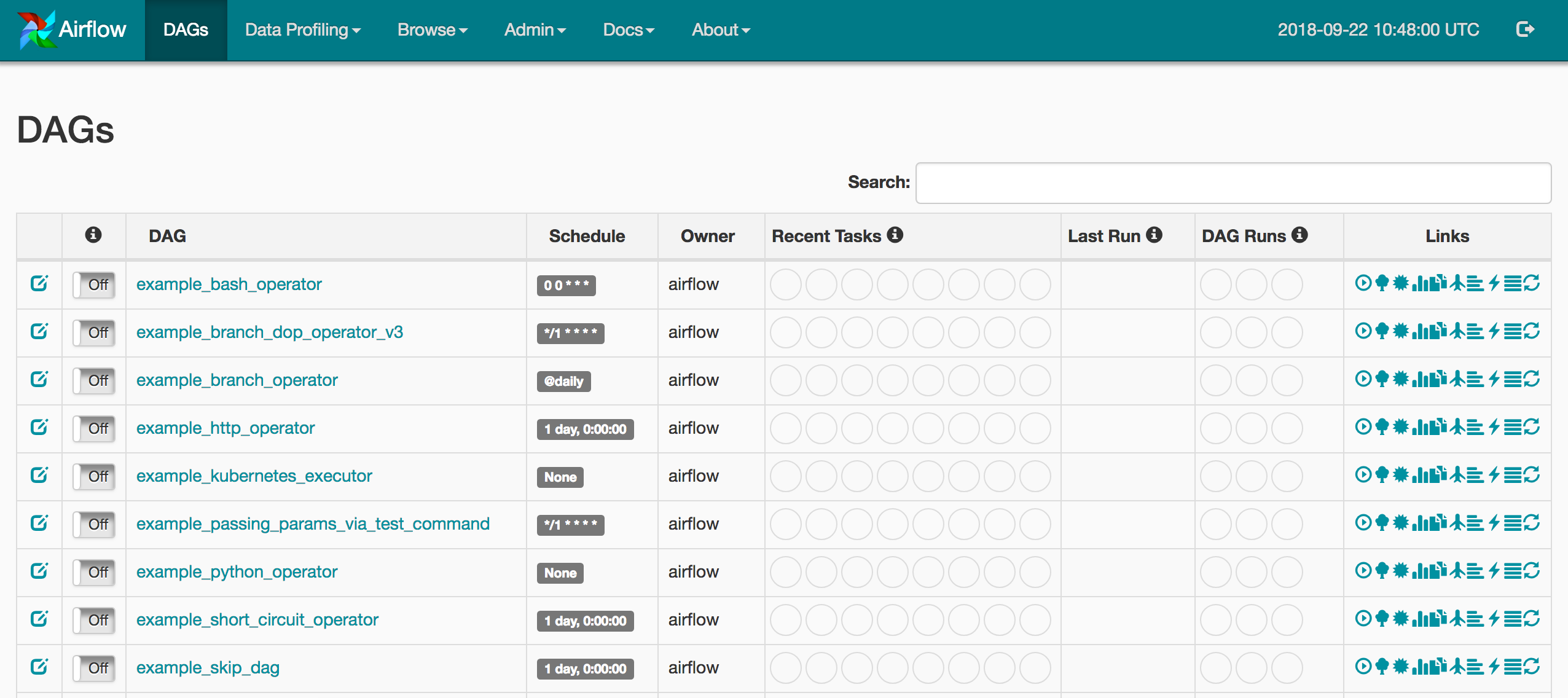

Airflow Web UI in action

You can see a bunch of entries here. These are the example shipped with the Airflow installation. You can turn them off by visiting  file and set  to

DAG Runs tell how many times a certain DAG has been executed. Recent Tasks tells which task out of many tasks within a DAG currently running and what’s the status of it. The Schedule is similar to the one you would have used when scheduling a Cron, therefore, I won’t emphasize on it at the moment. The Schedule is responsible at what time this certain DAG should be triggered.

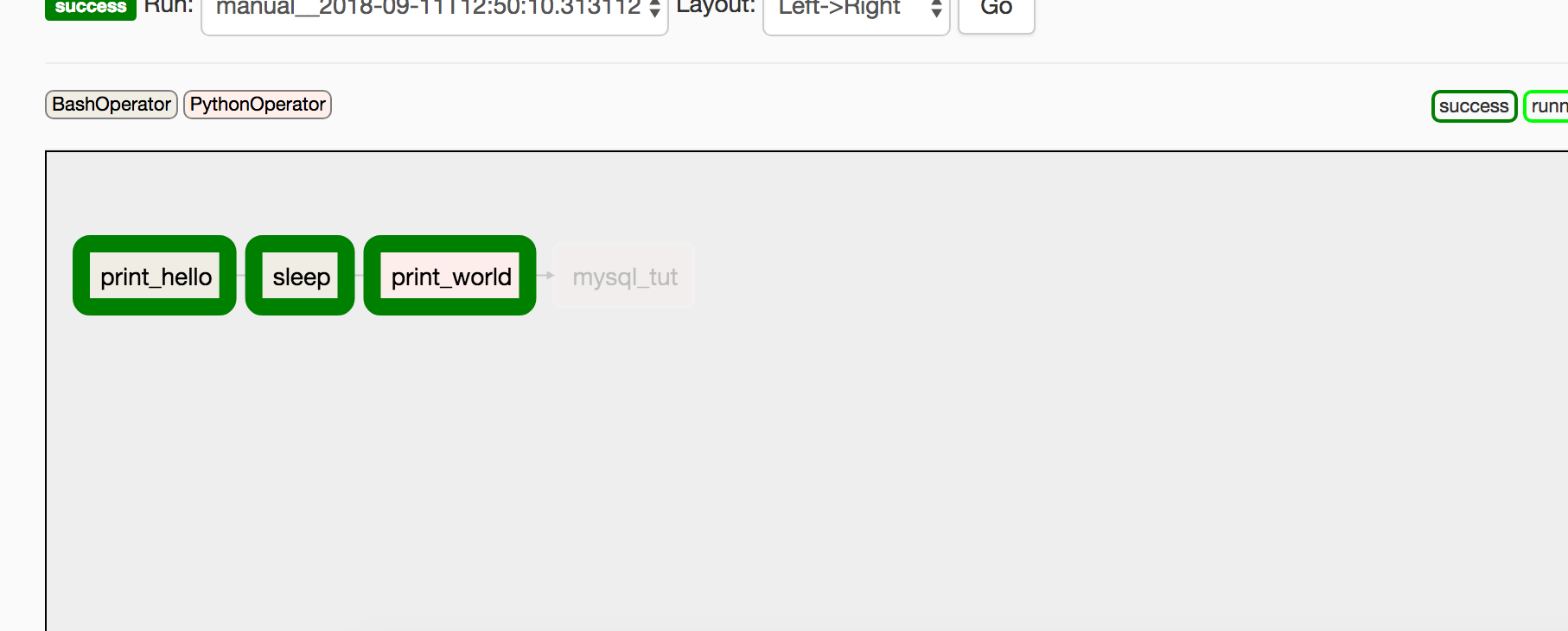

DAG (Graph View)

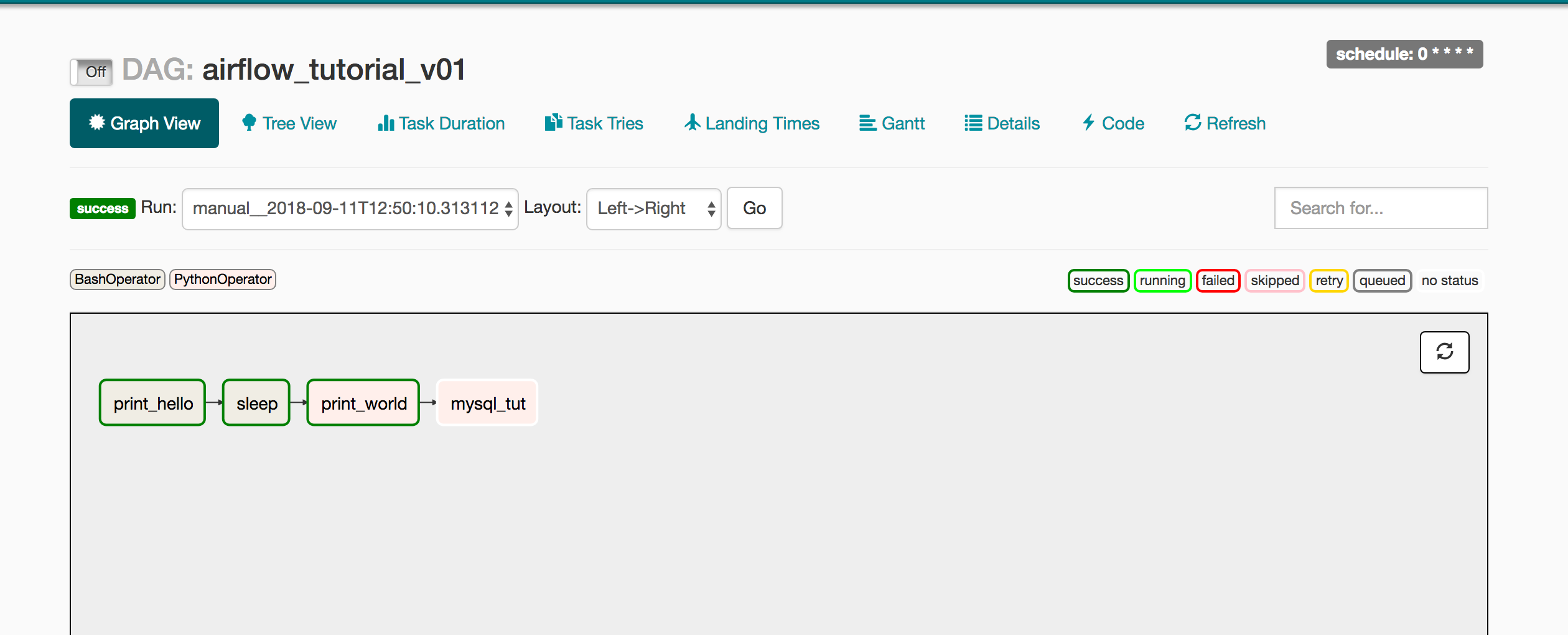

Here is the screenshot from a DAG I created earlier and executed. You can see rectangular boxes representing a task. You can also see different color boxes on the top right of the greyed box, named: success, running, failed etc. These are legends. In the picture above you can all boxes have a green border, still, if you are unsure then hover your mouse on success legend and you will see a screen like below:


You might have noticed the background/filling color of these boxes which is green and reed. On top-left of the greyed box, you can see why are they in such colors, these background color represents the different types of operators being used in this DAG. In this case, we are using BashOperator and PythonOperator.

Basic Example

We will work on a basic example to see how it works. I will be explaining the example. In the  folder which was earlier created in  we will create our first sample DAG. So, I am going to create a file with name,

The very first thing you are going to do after imports is to write routines that will serve as tasks for Operators. We will be using a mixture of  and .

import datetime as dt

from airflow import DAG
from airflow.operators.bash_operator import BashOperator
from airflow.operators.python_operator import PythonOperator


def greet():
    print('Writing in file')
    with open('path/to/file/greet.txt', 'a+', encoding='utf8') as f:
        now = dt.datetime.now()
        t = now.strftime("%Y-%m-%d %H:%M")
        f.write(str(t) + '\n')
    return 'Greeted'def respond():
    return 'Greet Responded Again'

These are two simple routines which are doing nothing but returning a text. I will tell you later why am I writing something in a text file. Next things I am going to do is to define  and create a  instance.

default_args = {
    'owner': 'airflow',
    'start_date': dt.datetime(2018, 9, 24, 10, 00, 00),
    'concurrency': 1,
    'retries': 0
}

Here you set a bunch of parameters in the   variable.

 tells since when this DAG should start executing the workflow. This  could belong to the past. In my case, it is 22 September and 11 AM UTC. This date is past for me now because it’s already 11:15 AM UTC for me. You can always change this parameter via  file and set your own local timezone. For now, UTC is fine for me. In case you are still curious what time is being used by Airflow, check on the top right of the Airflow Web UI, you should see something like given below. You can use this as a reference to schedule your tasks.

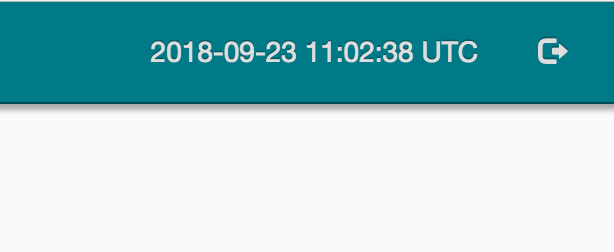

Current time on Airflow Web UI

The  parameter retries to run the DAG X number of times in case of not executing successfully. The  parameter helps to dictate the number of processes needs to be used running multiple DAGs. For instance, your DAG has to run 4 past instances, also termed as Backfill, with an interval of 10 minutes(I will cover this complex topic shortly) and you have set  to  then 2 DAGs will run at a time and execute tasks in it. If you already have implemented  in your Python then you should feel like home here.

with DAG('my_simple_dag',
         default_args=default_args,
         schedule_interval='*/10 * * * *',
         ) as dag:
    opr_hello = BashOperator(task_id='say_Hi',
                             bash_command='echo "Hi!!"')

    opr_greet = PythonOperator(task_id='greet',
                               python_callable=greet)
    opr_sleep = BashOperator(task_id='sleep_me',
                             bash_command='sleep 5')

    opr_respond = PythonOperator(task_id='respond',
                                 python_callable=respond)opr_hello >> opr_greet >> opr_sleep >> opr_respond

Now using Context Manager we are defining a DAG with its properties, the first parameter is the ID of the dag, in our case it is  , the second parameter we already have discussed, the 3rd parameter is something that needs to be discussed along with  that mentioned in .

Within that Context Manager, you are assigning operators along with task Ids. In our case these operators labeled as:    and . These names then appear in rectangular boxes discussed above.

Before I move further, I better discuss DAG Runs and scheduler and what role do they play in the entire workflow.

What is Airflow Scheduler?

Airflow Scheduler is a monitoring process that runs all the time and triggers task execution based on  and

What is DagRun?

A DagRun is the instance of a DAG that will run at a time. When it runs, all task inside it will be executed.

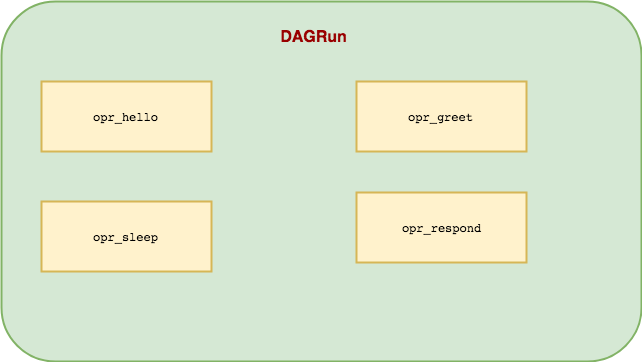

Above is the diagram which might help to figure out about a DAGRun :-)

Assume the  is September,24,2018 12:00:00 PM UTC and you have started the DAG at 12:30:00 PM UTC with the  of */10 * * * *(After every 10 minutes). By using the same  params discussed above, the following will be the entries of DAG that will run instantly, one by one in our case due to  is :

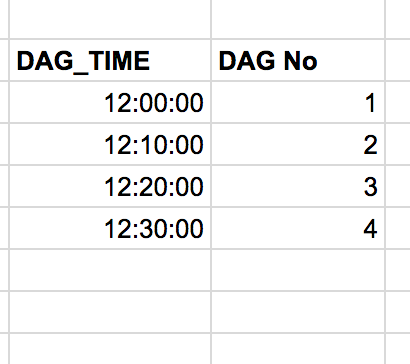

Running DAGS since the start date

Why is it happening? Well, you are responsible for it. Airflow gives you the facility to run past DAGs. The process of running past DAGs is called Backfill. The process of Backfill actually let Airflow forset some status of all DAGs since it’s inception. The feature has been given for scenarios where you are running a DAG which queries some DB or API like Google Analytics to fetch previous data and make it part of the workflow. Even if there is no past data, Airflow will run it anyway to keep the state of the entire workflow intact.

Once past DAGs are run, the next(the one you intend to run will run) at 12:40:00 PM UTC. Do remember that whatever the schedule you set, the DAG runs AFTER that time, in our case if it has to run after every 10 mins, it will run once 10 minutes are passed.

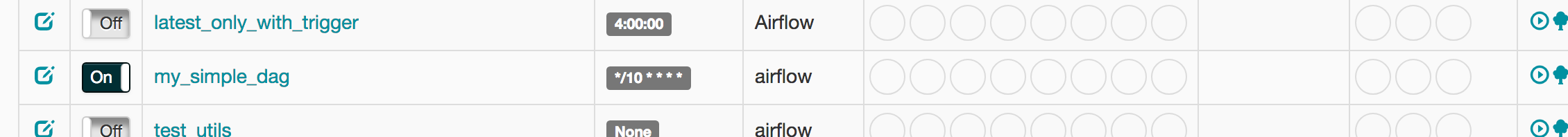

Let’s play with it. I turn  on and then start the scheduler.


Starting the DAG

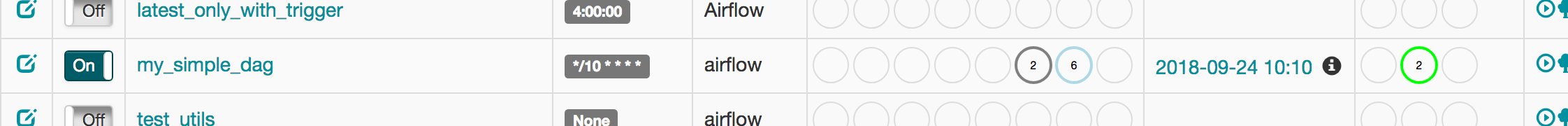

As soon as you run you will see the dag screen like this:


DAG with status “Running”

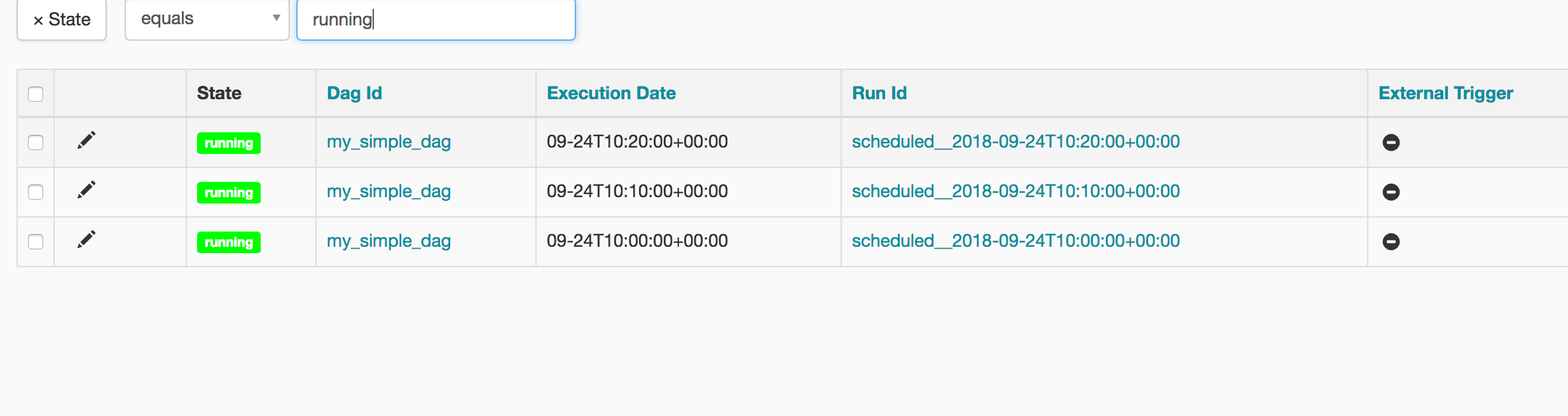

Some of the tasks are queued. If you click on the DAG Id,  you will see a screen like below:


DAGs backfilled

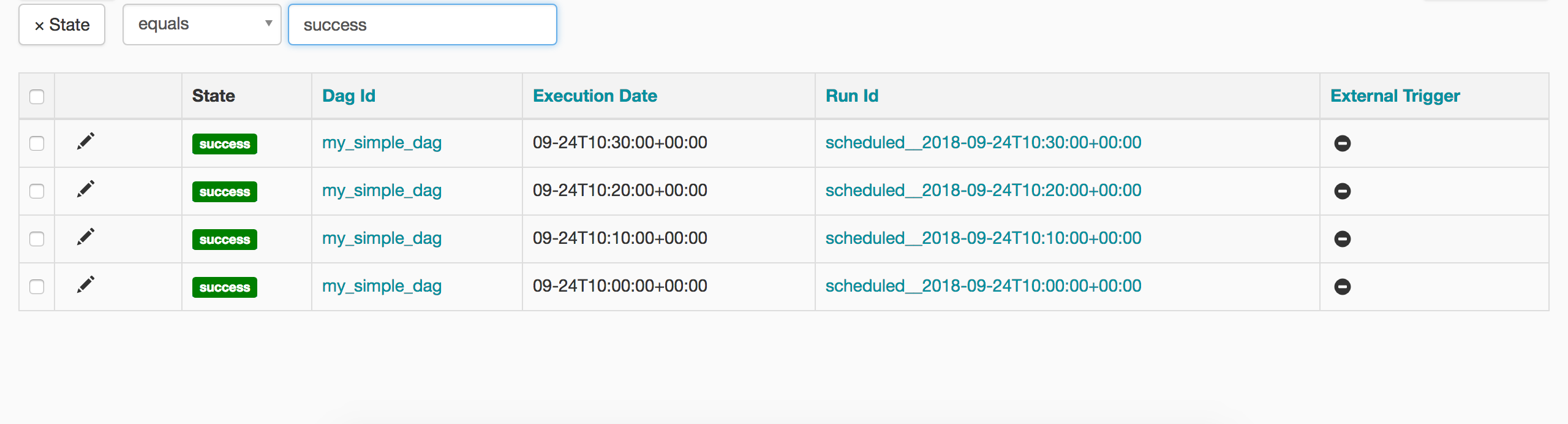

Notice the timestamp in Run Id column. Do you see the pattern? The first one executed at 10:00, then 10:10, 10:20. It then stops, let me clarify again that the DAG runs once the time duration which is 10minutes is passed. The scheduler started at 10:30 AM. so it filled passed 3 with the difference of 10 mins of the interval.


DAG with Backfills and the current one

The DAG that was executed for 10:30:00 AM UTC was actually done at 10:40:00 AM UTC, The latest DAGRun record will always be a one minus than the current time. In our case, the machine time was 10:40:00 AM UTC

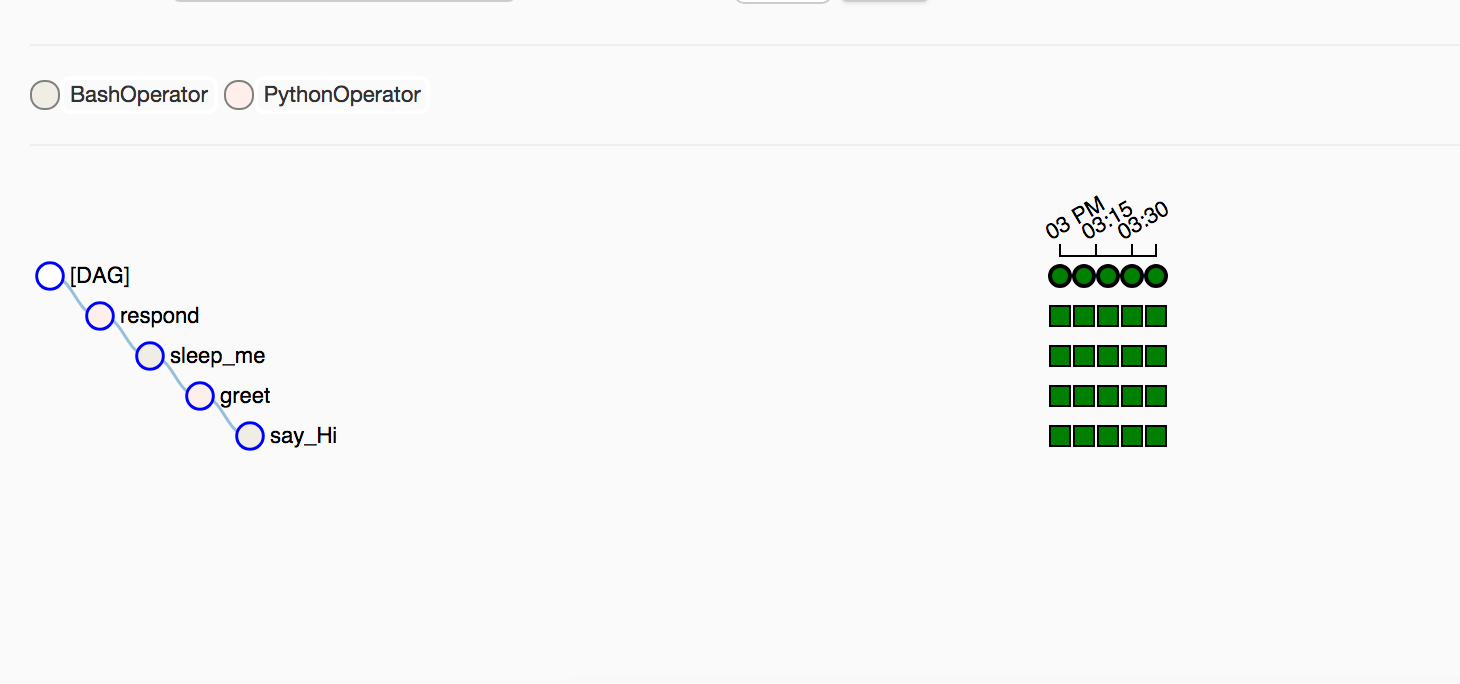

DAG Tree View

If you hover on one of the circles you can see the timestamp in front of Run: that tells the time it was executed. You can see that these green circles have a time difference of 10 minutes. The Tree View gives is a bit complicated but gives a complete picture of your entire workflow. In our case, it was run 4 times and all tasks ran successfully, the dark green color.

You can avoid Backfilling in two ways: You set  of the future or set  in  instance. For instance, you can do something like below:

with DAG('my_simple_dag',
         catchup=False,
         default_args=default_args,
         schedule_interval='*/10 * * * *',
         # schedule_interval=None,
         ) as dag:

By setting  it then does not matter whether your  belongs to the past or not. It will be executing from the current time and continues. By setting  you can make a DAG stop running itself.

opr_hello >> opr_greet >> opr_sleep >> opr_respond

The line you are seeing above tells the relationship between operators hence constructs the entire workflow. The bitwise operator here is telling the relationship between operators. Here  runs first and then the rest. The flow executes from left to right. In pictorial form it looks like below:

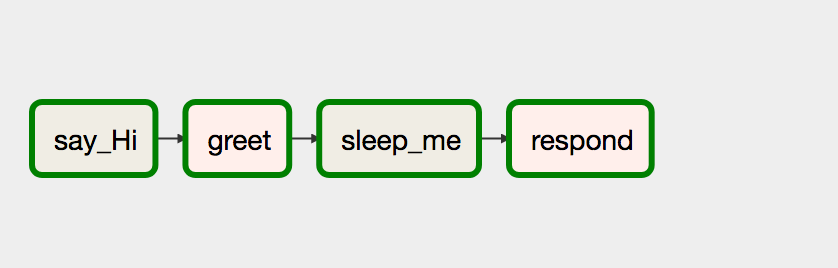

DAG In GraphView
opr_hello >> opr_greet >> opr_sleep << opr_respond

If you change the direction of the last operator the flow will look like below:

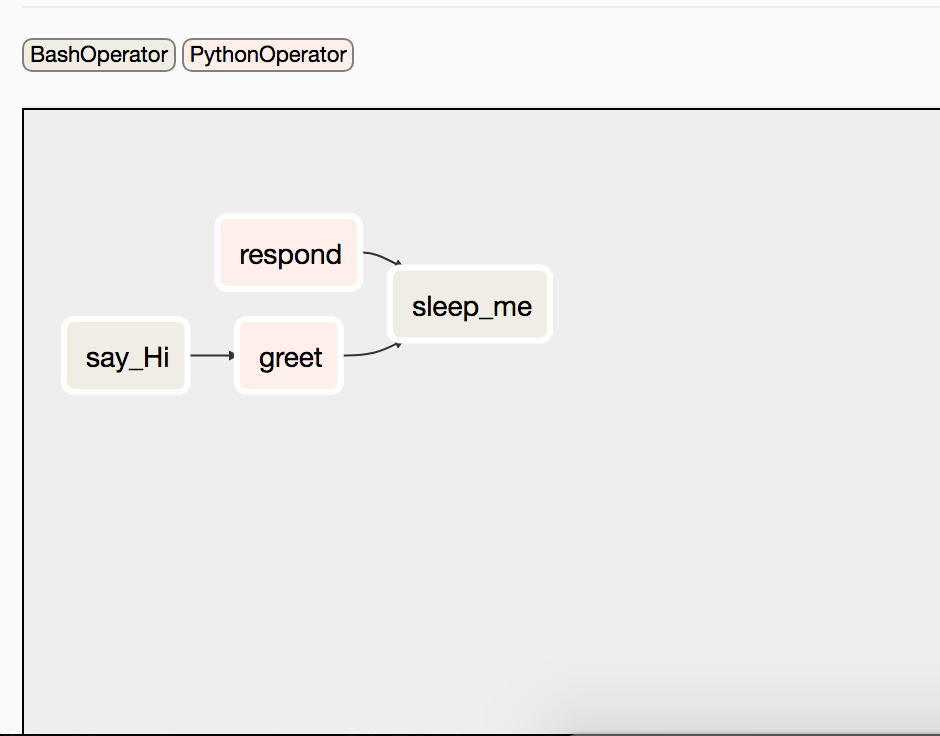

The  task will execute in parallel and  will execute in both cases.
